Item
|
GM-1600DRV
|
|
Standard container
|
1600mlx2 HDPE（φ115.5×173mm）
|
|
Other Applicable containers
|
600ml,300ml,200ml,50ml
|
|
Applicable syringes
|
300cc,150cc,70cc,50cc,30cc
|
|
Actual handling capacity
|
(50g~2000g)x2 & <800mlx2
|
|
Revolution speed
|
200~1500rpm (Accuracy: 1rpm)
|
|
Rotation speed
|
fixed at 70% of Revolution speed
|
|
Operation time
|
0~500 sec adjustable for each stage, 6 stages in total, Accuracy 1sec
|
|
Program storage capacity
|
30 sets
|
|
Panel access authorization
|
2 Levels
|
|
Balance adjustment
|
Two-cup feed balance
|
|
Safety protection
|
automatic stop in case of malfunction, locking of the cover during operation, stops when cover is opened
|
|
Vacuum level
|
4.5 ~ 760 mmHg
|
|
Vacuum Capacity
|
Vacuum speed 20m ³/h
|
|
Applicable temperature and humidity
|
10~40 ℃；20~80%RH
|
|
Voltage
|
AC220V±5%；1-Phase；50~60Hz
|
|
Power
|
3.0KW
|
|

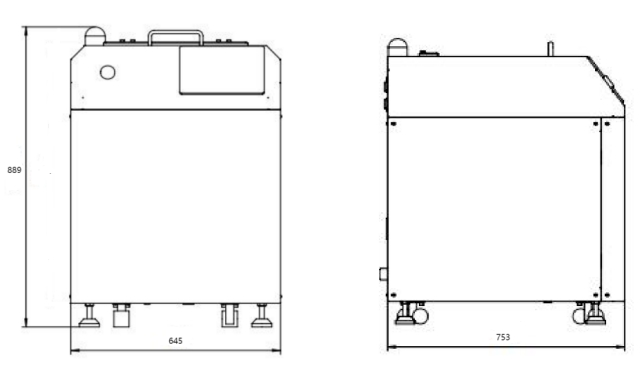

Dimension
|
L645×W753×H889mm
|
|
