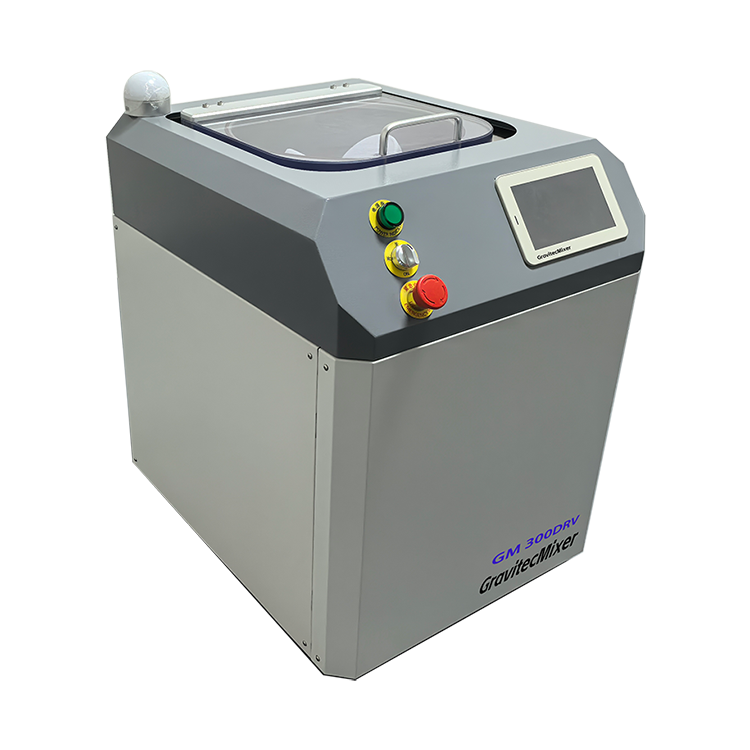

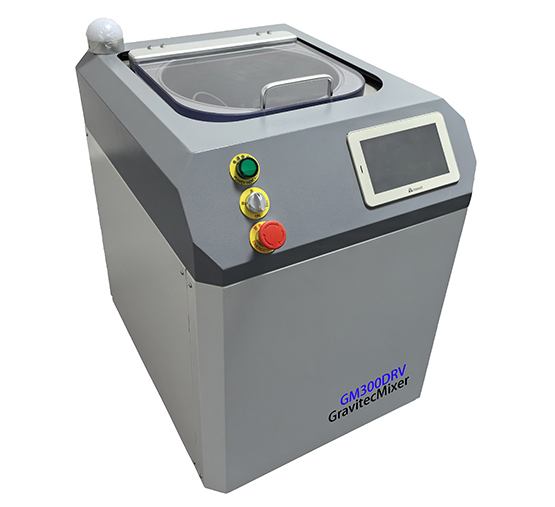

GM-300DRV|GravitecMixer

Advanced Laboratory Mixer Series: Enhanced Mixing & Deaeration Efficiency for Small-scale Material Processing

Model

Maximum Capacity

- Features

◆ Easy to clean
◆ Preservation of the morphology of materials
◆ Efficient, intelligent, quiet and tolerance to misuse
◆ Homogenize paste formula in 60-300 seconds
◆ Ideal for laboratory prototyping and verification of material formulations
◆ Suitable for high viscosity slurries/pastes, high solid content slurries/pastes and multi-component slurries/pastes, which can realize the dual purpose of mixing/debubbling at the same time. Suitable for solid-solid mixing, solid-liquid mixing, liquid-liquid mixing.

- Optional function

Item	GM-300DRV
Standard container	300mlx2 HDPE (φ79×86mm)
Other Applicable containers	200ml,50ml or less
Applicable syringes	170cc,150cc,75cc,50cc,30cc,20cc,10cc,5cc
Actual handling capacity	(10~300g)x2 & <150mlx2
Revolution speed	0-2500rpm (Accuracy: 1rpm)
Rotation speed	Fixed at 70% of Revolution speed
Operation time	0~500 sec adjustable for each stage, 6 stages in total, Accuracy 1sec
Program storage capacity	30 sets
Panel access authorization	2 Levels
Balance adjustment	Two-cup feed balance
Safety protection	automatic stop in case of malfunction, locking of the cover during operation, stops when cover is opened

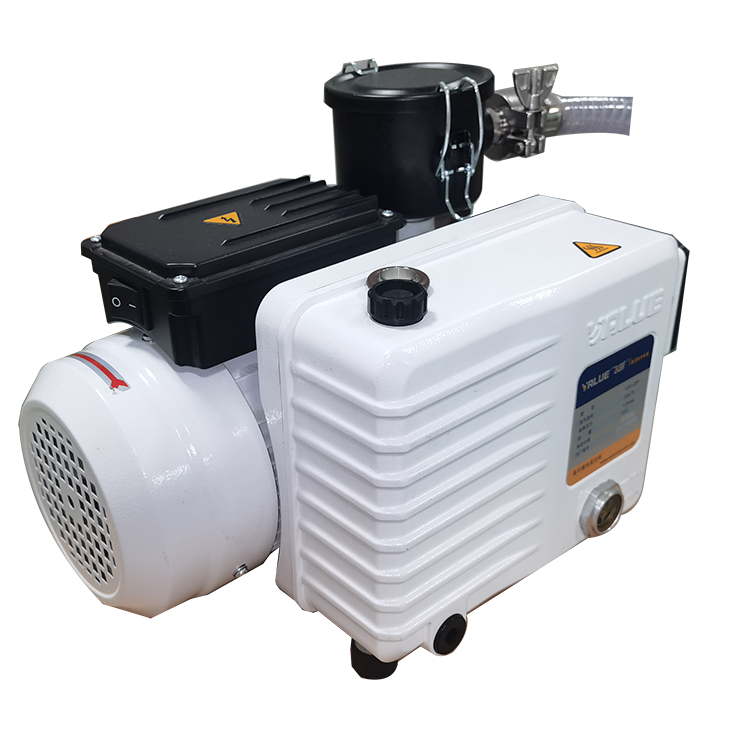

Vacuum level	4.5 ~ 760 mmHg
Vacuum Capacity	Vacuum speed 20m ³/h
Applicable temperature and humidity	10~40 ℃；20~80%RH
Voltage	AC220V±5%；1-Phase；50~60Hz
Power	3.0KW
Dimension	L523×W622×H749mm

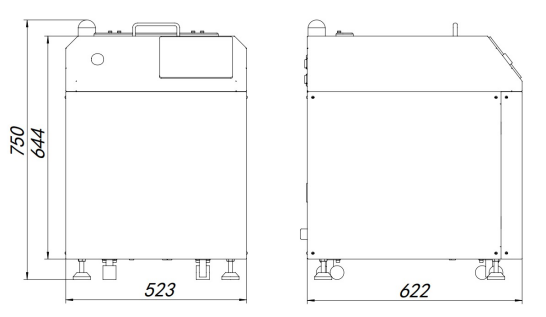

- Dimensions
