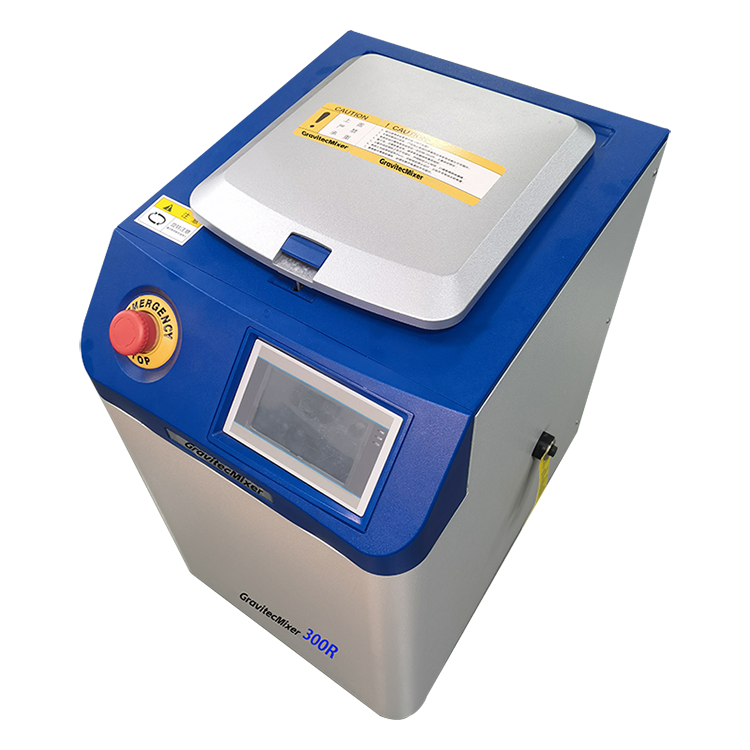

GM-300SRV|GravitecMixer

Advanced Laboratory Mixer Series: Enhanced Mixing & Deaeration Efficiency for Small-scale Material Processing

Model

Maximum Capacity

- Features

◆ Easy to clean
◆ Preservation of the morphology of materials
◆ Efficient, intelligent, quiet and tolerance to misuse
◆ Homogenize paste formula in 60-300 seconds
◆ Ideal for laboratory prototyping and verification of material formulations
◆ Suitable for high viscosity slurries/pastes, high solid content slurries/pastes and multi-component slurries/pastes, which can realize the dual purpose of mixing/debubbling at the same time. Suitable for solid-solid mixing, solid-liquid mixing, liquid-liquid mixing.

- Optional Function

Item	GM-300SRV

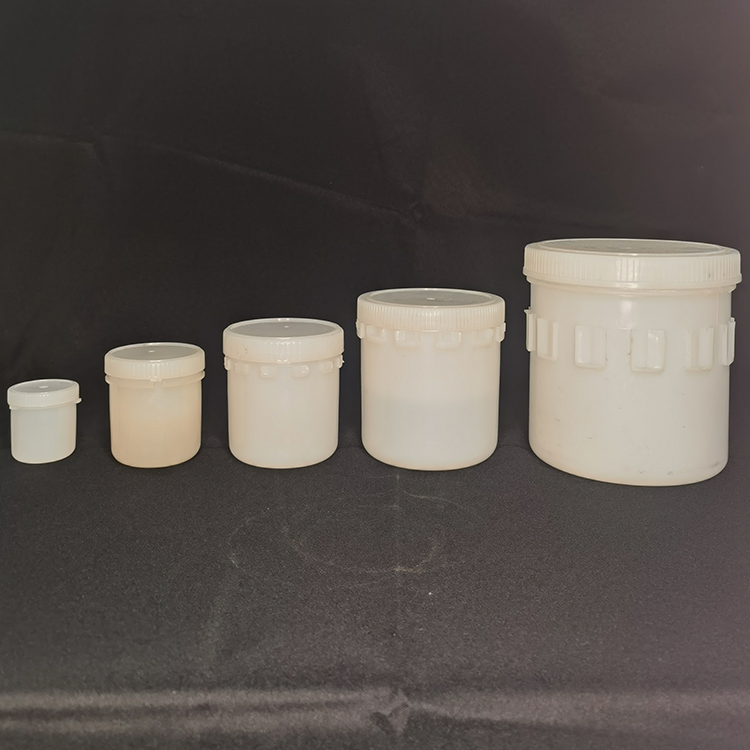

Standard container	300ml HDPE (φ76.8×78mm)
Other Applicable containers	200ml,50ml or less
Applicable syringes	10cc,5cc
Actual handling capacity	00~250g & <150ml
Revolution speed	200~2200rpm (Accuracy: 1rpm)
Rotation speed	fixed at 70% of Revolution speed
Operation time	0~300 sec adjustable for each stage, 5 stages in total, Accuracy 1sec
Program storage capacity	20 sets
Panel access authorization	2 Levels
Balance adjustment	adaptive
Safety protection	automatic stop in case of malfunction, locking of the cover during operation, stopping when the cover is opened

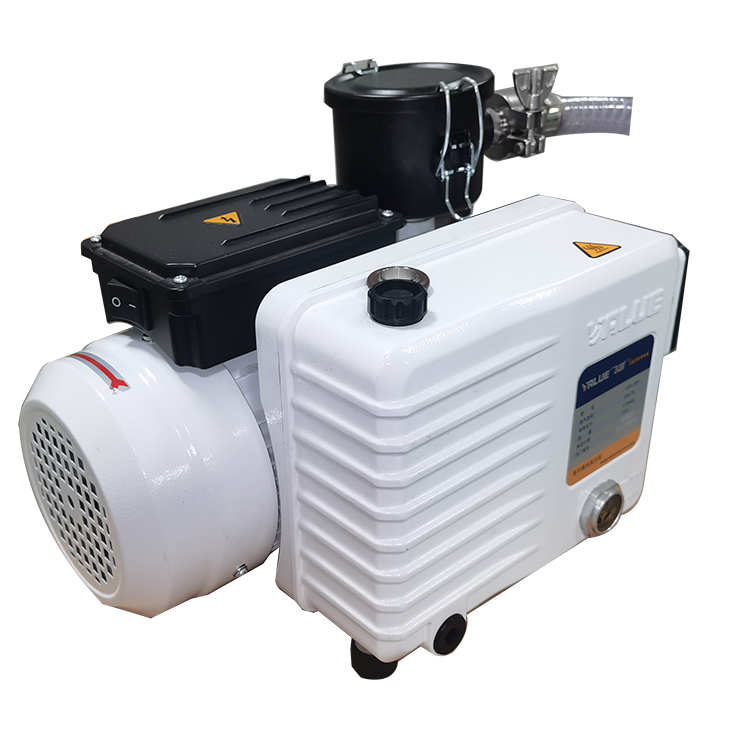

Vacuum level	4.5 ~ 760 mmHg
Vacuum capacity	Vacuum speed 20m ³/h
Vacuum connection	KF16/D19
Applicable temperature and humidity	10~40 ℃；20~80%RH
Voltage	AC220V±5%；1-Phase；50~60Hz
Power	1300W+...W
Dimension	L373×W567×H610mm

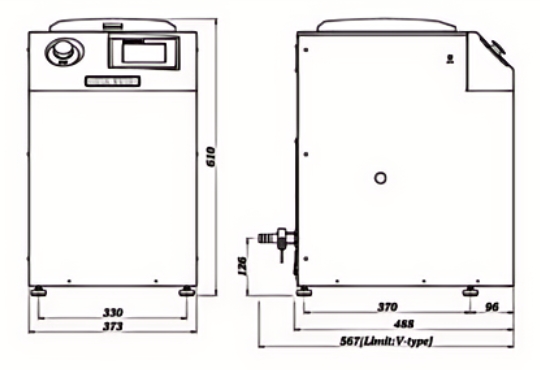

- Dimensions
