Test of Processing Silicon-Carbon Anode Slurry for Digital Batteries with GM-iL-20HV In-line Degasser
Machine name:Defoamer machine
Machine Model No:GM-iL-20HV
Material:Silicon-carbon anode slurry for digital batteries .
The initial state of the material is uneven, bubble-laden, and lacks luster.
When the initial material is scraped thin with a coating blade, obvious bubbles are visible to the naked eye under light.
Before starting the experiment, we need to measure the viscosity value of the material with a viscometer to determine the range of parameters for the equipment.
Similarly, we need to record the temperature comparison before and after material degassing, which is critical for materials with temperature requirements.
We can test the degassing efficiency by the weight of the processed material within a certain time.
Now let's start the pre-test preparations.

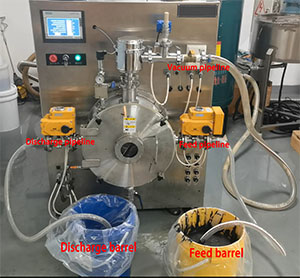

Place the feed pipe into the material barrel to be degassed and the discharge pipe into a clean material collection barrel. Turn on the vacuum pump, start the GM-iL-20HV equipment, and set the feed and discharge speeds according to the material viscosity after the equipment starts. After the parameter setting is completed, start the equipment, and we can observe the effect of the degassed material after a short wait.
The obvious difference between the silicon-carbon anode slurry before and after degassing can be clearly seen. After degassing, the surface is smooth, glossy, and free of any bubbles.
When the degassed material is scraped thin with a coating blade and observed under light, it is also smooth, glossy, and bubble-free. Let's make a comparison before and after.
The GM-iL-20HV in-line continuous degassing equipment can remove micron-level gas from fluids of various viscosities. Relying on the VTR principle (Vacuum-Thin Film-Rotation Process), the equipment can process various free-flowing compound materials such as offset printing inks, shampoos, food-grade chocolates, and epoxy resins.
The processing capacity of the equipment depends on product characteristics and viscosity, and it can handle large batches of materials in continuous operation.
